Pressure Guage
Accessories

Pressure Gauge Accessories and Components:

Introduction :-

Pressure gauges are essential instruments in various industries for monitoring and measuring pressure levels. To optimize their performance and extend their lifespan, pressure gauge accessories play a crucial role. In this blog, we will explore different pressure gauge accessories, including snubbers, gauge savers, gauge cocks, and diaphragm seals. We'll delve into their specific features and the benefits they offer in industrial applications.

Conclusion :-

We are Manufacturing Pressure gauge accessories essential for ensuring the reliable and accurate performance of pressure gauges part in various industrial settings. Snubbers dampen pressure pulsations, gauge savers protect against overpressure events, gauge cocks facilitate gauge maintenance without system shutdown, and diaphragm seals safeguard gauges from harsh process fluids. By choosing the right pressure gauge accessories, industries can enhance safety, extend gauge lifespan, and maintain precise pressure measurements, ultimately improving overall operational efficiency and reducing maintenance costs.

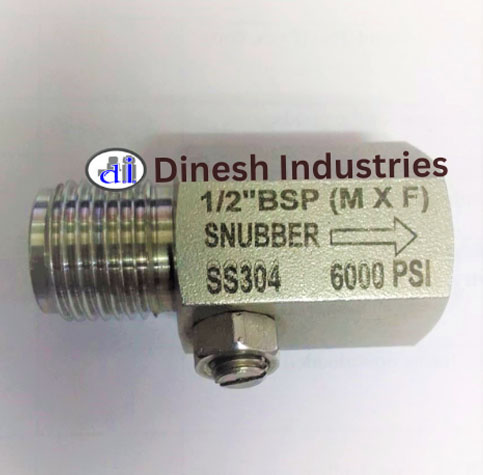

Snubber :

• Description

Snubber/Dampners only protect a pressure sensor from harm brought on by pressure pulses. They frequently feature adjustable constraints employing movable pins that offer a little self-cleaning when they are raised and lowered by the pressure pulses.

Features of snubber

- Snubbers are small devices attached to pressure gauges or transmitters. - They contain a porous element, such as a sintered metal filter or an orifice, which restricts the flow of fluid into the gauge. - Snubbers are designed to dampen pressure pulsations and spikes, preventing rapid pressure changes from damaging the gauge.

Benefits of snubber

- Gauge Protection: Snubbers protect pressure gauges from the damaging effects of pressure surges and vibrations, extending their lifespan. - Accuracy Maintenance: By reducing the impact of pressure fluctuations, snubbers help maintain gauge accuracy. - Improved Readings: Snubbers provide stable readings, making it easier for operators to interpret pressure data.

Thread Connection	BSP/NPT/BSPT.
Size	1/4", 3/8", 1/2", (F)X(M).
Finishing	AS PER MATERIAL.
Brand	Dinesh Industries.
Usage/Application	Pump, Hdraulic Machine, Compressor, Process Plant.
Pressure	1500 PSI, 3000 PSI, 6000 PSI
Material	Stainless Steel 304, 316, Brass
Testing	100%

Enquiry Now

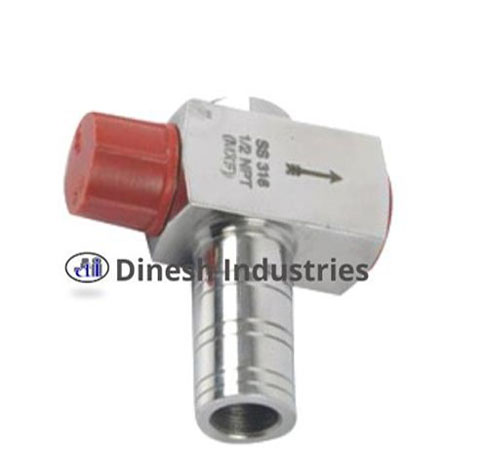

Gauge Saver :

• Description

When the process pressure exceeds the pressure instrument's over range limit, the gauge saver is used. When the process pressure rises above the predetermined pressure, Gauge Saver cuts off the pressure to the instrument, protecting the calibration and preventing damage to the sensing element.

Features of Gauge Saver

- Gauge savers are devices that act as sacrificial components installed between the process and the pressure gauge. - They are designed to absorb the impact of overpressure situations, shielding the gauge from damage. - Gauge savers can be reset or replaced after they have absorbed an excessive pressure spike.

Benefits of Gauge Saver

- Gauge Protection: Gauge savers absorb excessive pressure spikes, preventing damage to the pressure gauge and reducing maintenance costs. - Downtime Reduction: Instead of replacing an entire gauge after an overpressure event, you can simply reset or replace the gauge saver, minimizing downtime. - Cost-Efficiency: Gauge savers are a cost-effective solution for protecting expensive pressure gauges in high-pressure environments.

Thread Connection	BSP/NPT/BSPT.
Size	3/8", 1/2".
Material	Stainless steel 304, 316
Finishing	As Per Material.
Brand	Dinesh Industries.
Usage/Application	Oil, Gas, Temperature
Testing	100%

Enquiry Now

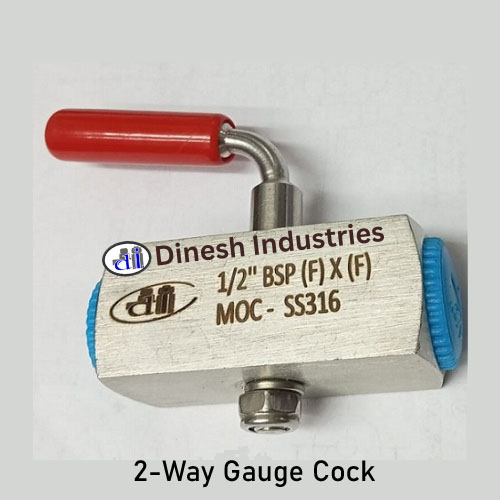

Guage Cock :

• Description

Gauge Cocks offer a cost-effective method of stopping the air flow to the pressure instrument, enabling the instrument to be separated from the pressure media or taken out of operation.

Features of Gauge Cock

- Gauge cocks are valves placed between the process and the pressure gauge. - They allow for the isolation of the gauge from the process, facilitating gauge maintenance or replacement without shutting down the entire system. - Gauge cocks come in various configurations, including three-way and two-way designs.

Benefits of Gauge Cock

- Process Isolation: Gauge cocks enable the isolation of pressure gauges for calibration, replacement, or maintenance, reducing system downtime. - Safety: They provide an added layer of safety by allowing gauges to be safely disconnected from the process, preventing accidental pressure release. - Versatility: Gauge cocks are adaptable to different applications and are available in various materials to suit specific environments.

Thread Connection	BSP/NPT/BSPT.
Size	1/4", 3/8", 1/2".
Material	Stainless steel 304, 316 Brass.
Finishing	As Per Material.
Brand	Dinesh Industries.
Usage/Application	Oil, Gas, Petrolium.
Testing	100%

Enquiry Now

Diaphragm Seal :

• Description

Diaphragm Seals: Precision meets versatility in pressure measurement. Our range includes Threaded Diaphragm Seals for secure threading, Inline Diaphragm Seals for seamless integration, Flanged Diaphragm Seals for diverse applications, and Sanitary Diaphragm Seals for hygienic environments. Trust in our seals for accurate, reliable results. When it comes to pressure, we've got you covered.

Features of Diaphragm Seal

Diaphragm seals are devices that separate the pressure gauge from the process fluid through a flexible diaphragm. - They are commonly used in applications involving corrosive, abrasive, or viscous fluids. - Diaphragm seals can be filled with a compatible fluid or filled with a barrier fluid to transmit pressure to the gauge.

Benefits of Diaphragm Seal

- Compatibility: Diaphragm seals protect pressure gauges from corrosive or aggressive media, ensuring gauge longevity and accuracy. - Versatility: They are suitable for a wide range of industries, including chemical, pharmaceutical, and food processing. - Process Integrity: Diaphragm seals prevent process fluids from contaminating the gauge, maintaining the integrity of the measurement.

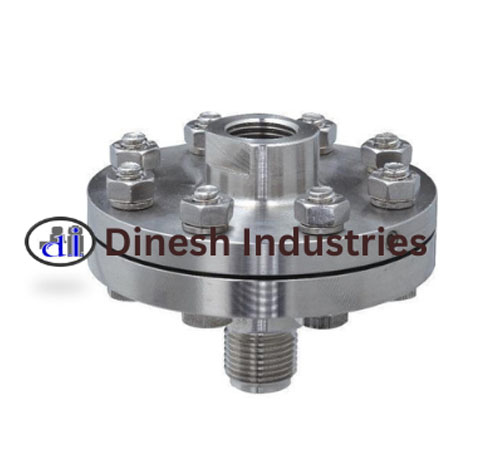

Threaded Diaphragm Seal

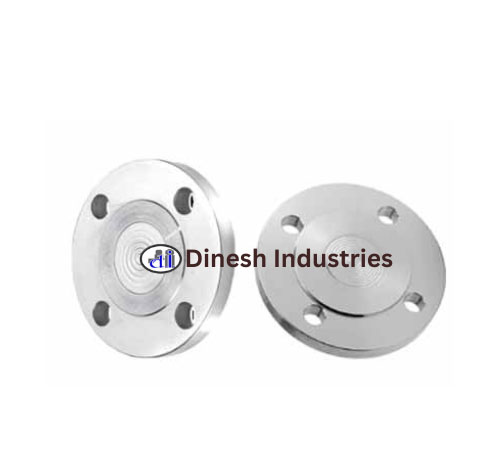

Inline Diaphragm Seal

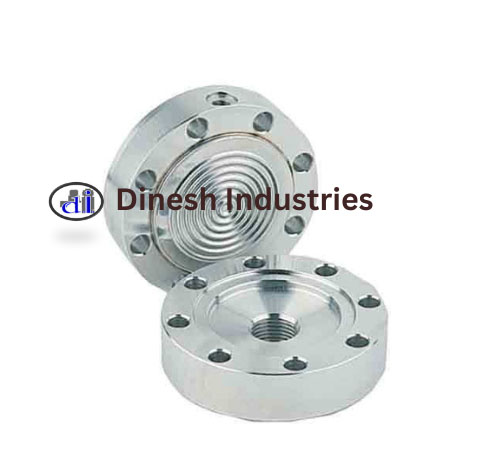

Flanged Diaphragm Seal

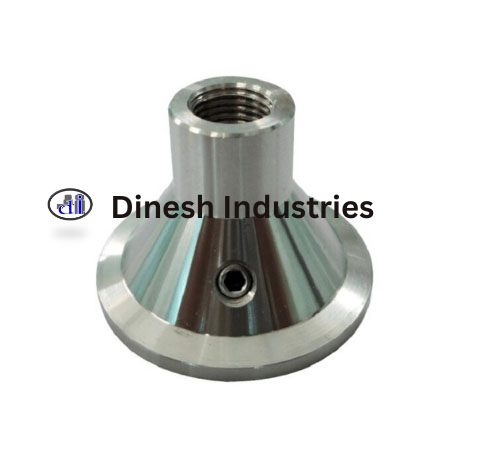

Sanitarty Diaphragm Seal
